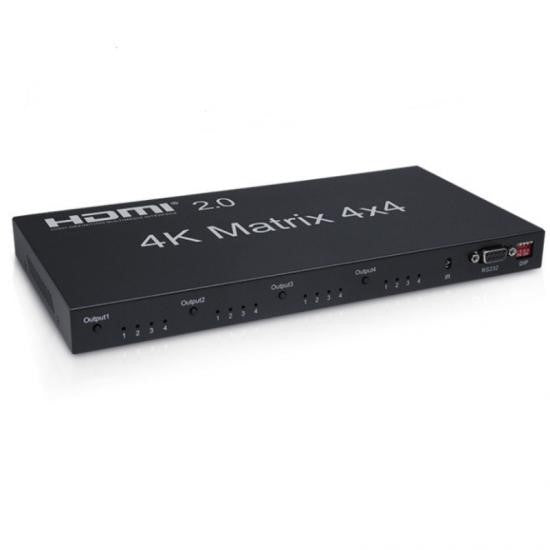

Dtech Matrix Switch, HDMI, 4 Port - 7030
• 4k Matrix Switcher 4K 60Hz 4x4 HDMI Matrix Switch
• This HDMI 2.0 matrix 4x4 can connect four high-definition signal sources and four high-definition signal terminals simultaneously. It can It is easy to freely switch or distribute the four HD signals on four monitors or projectors compatible with HD signals.
• Support RS232 remote control.
• The HDMI matrix 4x4 reforms and amplifies the input signal, and transmits it through HDMI cable without loss.
• This HDMI matrix provides The solution is applied to entertainment centers, retail and websites of digital high-definition television programs, high-definition televisions, set-top boxes, DVD and projector factory, noise, space and safety issues, data center control, information distribution, conference room introduction, school And corporate training environment.
• 4k Matrix Switcher 4K 60Hz 4x4 HDMI Matrix Switch
• This HDMI 2.0 matrix 4x4 can connect four high-definition signal sources and four high-definition signal terminals simultaneously. It can It is easy to freely switch or distribute the four HD signals on four monitors or projectors compatible with HD signals.
• Support RS232 remote control.
• The HDMI matrix 4x4 reforms and amplifies the input signal, and transmits it through HDMI cable without loss.
• This HDMI matrix provides The solution is applied to entertainment centers, retail and websites of digital high-definition television programs, high-definition televisions, set-top boxes, DVD and projector factory, noise, space and safety issues, data center control, information distribution, conference room introduction, school And corporate training environment.
Specification:
HDMI version.....................................................HDMI2.0/HDCP2.2 HDMIresolution.............................................Upto4K/60Hz Supportvideoformat....................................................8/10/12bitcolordepth Supportaudioformat.........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Maximumtransmissionrate........................................................18Gbps Inputcablelength.....................................................≤10mAWG24 Outputcablelength.....................................................≤10mAWG24 HDMIinputport...........................................................4 HDMIoutputport..............................................................4 Maximumworkingcurrent............................................................1.6A
Power adapter specifications ................ Input: AC(50HZ,60HZ)100V-240V;Output: DC12V/2A rangeofworkingtemperature....................................................(-15to+45℃) Operatinghumidityrange........................................5to90%RH(nocondensation) Dimensions(length*width*height).................................................276x143x26(mm) weight...................................................................720.5g
DT7030 Datasheet PDF
