Aten Extender, USB 3.2, 4-port, Cat 6A - UCE33100

• As the scope of meeting rooms continually evolves, it’s critical that we keep pace and maintain fast data transmission that extends to a longer distance should the occasion arise. In such cases, the UCE33100 becomes your perfect partner as it extends your USB connectivity across a distance of up to 100 m over a Cat 6A cable to assure a smooth meeting experience and contribute toward your overall operational efficiency at the office.

• 5 Gbps High-Speed Data Transmission over 100 m

Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to 100 m with a Cat 6A cable*. (Product recommendation: 2L-29330)

• 4 X USB Type-A Ports for Plug-n-Play Peripheral Connections

Enhance the resourcefulness of the extender by tapping into its 4 USB type-A ports and have a wide range of peripherals at your disposal.

• PoC Power Supply for Ultimate Usability Convenience

Either the local or remote unit could be plugged into a power source, powered by just a Cat 6A connection cable.

• Easily Mountable for Versatile Deployment

For added ease of installation and expansion, a mounting kit is provided as a resourceful accessory to facilitate easy and convenient installation.

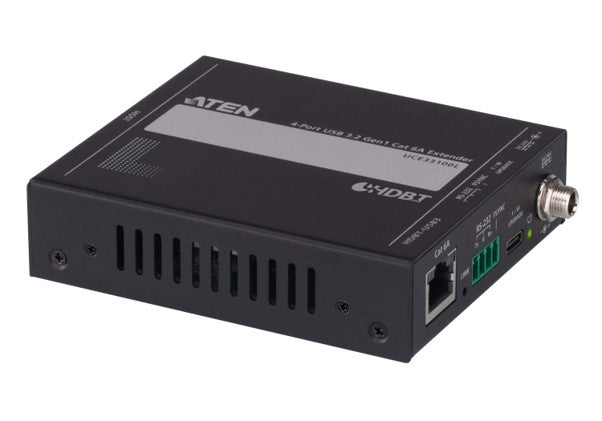

• The UCE33100 is a two-piece extension kit that transmits uncompressed USB 3.2 data at up to 5Gbps over a 100 m Cat 6A cable. With four USB Type-A ports built on the remote unit, the connection to multiple USB peripherals, from flash drives, keyboards, mice, and webcams to interactive whiteboards, is made easy. The support for bi-directional RS-232 pass-through facilitates integration into control systems, and apart from that, the Frame Synchronization (FSYNC) GPIO pass-through ports allow bi-directional commands to be sent when it comes to industrial camera implementations. The bi-directional 24V power over cable function eliminates the need for an additional power adapter when either of the local or remote unit receives power.

• The UCE33100 supports plug-and-play operation to work flawlessly with all operating systems, assuring hassle-free installation with no extra driver or software required. Flexibility is further enhanced due to the extender’s compact, wall-mountable enclosure, which also helps save space.

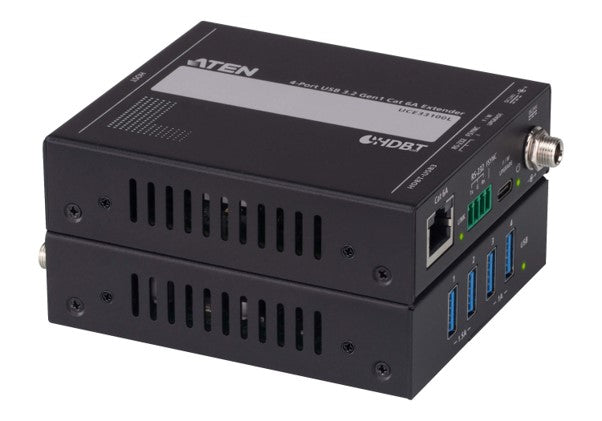

A two-piece extension kit that transmits USB signals over a Cat 6A cable

Long distance USB 3.2 data transmission at up to 5Gbps across 100m

Backward compatible with USB 2.0 / 1.1 specifications

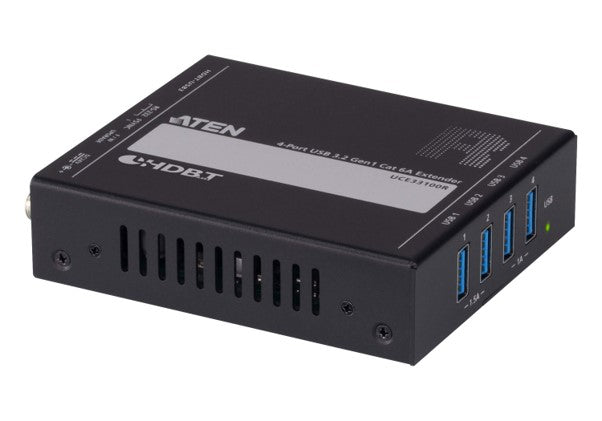

4x USB Type-A ports built on the remote unit for connection to multiple USB peripherals (flash drives, keyboards, mice, webcams, interactive whiteboards, and any other USB-based devices)

Supports bi-directional RS-232 pass-through for integration into control systems

Supports bi-directional Frame Synchronization (FSYNC) GPIO pass-through for industrial camera applications

Bi-directional 24V power over cable eliminates the need for an additional power adapter when either of the local or remote unit receives power

Plug-and-play with no driver / software required to work with all operating systems

Compact, wall-mountable enclosure elevates installation flexibility and helps save space
