Plug-n-Play
No installation software or drivers required. The VC985 is the perfect solution for connecting DisplayPort inputs to HDMI output displays.
Supports 1080p
Supports resolutions up to 1080p, making it highly compatible across devices.
Superior Signal Quality

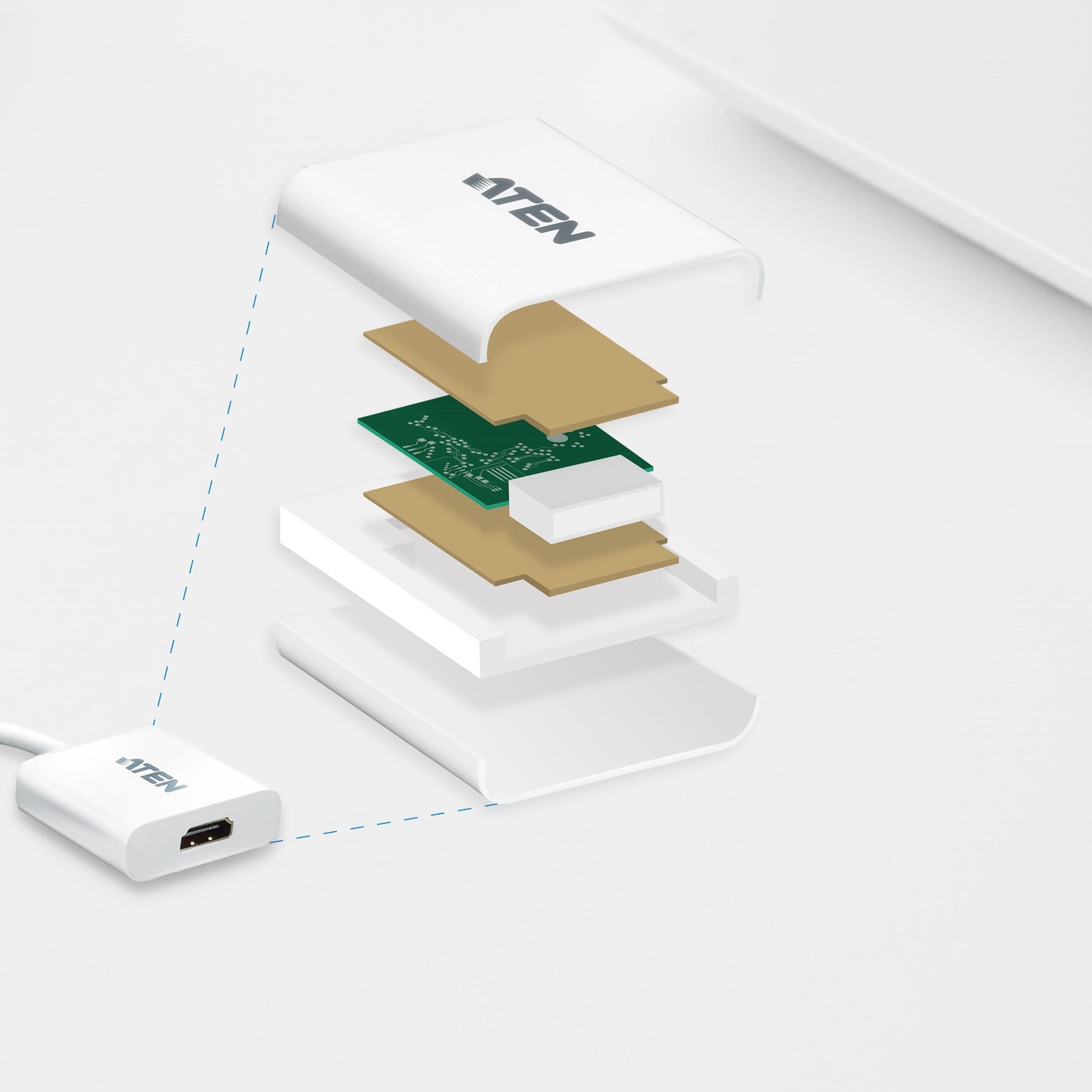

The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals.
The VC985 is a DisplayPort to HDMI adapter, allowing you to connect your device’s DisplayPort output to the HDMI input of a TV or other display.
The VC985 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to 1080p (1920x1080@60Hz).
• Converts DisplayPort signals to HDMI output
• DisplayPort 1.2 a compliant
• Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1080p (HDTV)
• Audio Supported
• No software or driver installation required
|
Video Input |
|
|
Interfaces |
1 x DisplayPort Male (White) |
|
Video Output |
|
|
Interfaces |
1 x HDMI Type A female (Black) |
|
Video |
|
|
Max. Pixel Clock |
165MHz |
|
Max. Resolution |
1920 x 1080@60HZ |
|
Compliance |
DP1.2, HDMI 1.3 |
|
Audio |
|
|
Output |
1 x HDMI Type A Female (Black) |
|
Environmental |
|
|
Operating Temperature |
0 - 50 ºC |
|
Storage Temperature |
-20–60 ºC |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.04 kg ( 0.09 lb ) |
|
Dimensions (L x W x H) |
18.00 x 4.50 x 1.50 cm |
|
Carton Lot |
40 pcs |
VC985 Datasheet PDF
