Aten Emulator, HDMI - VC080

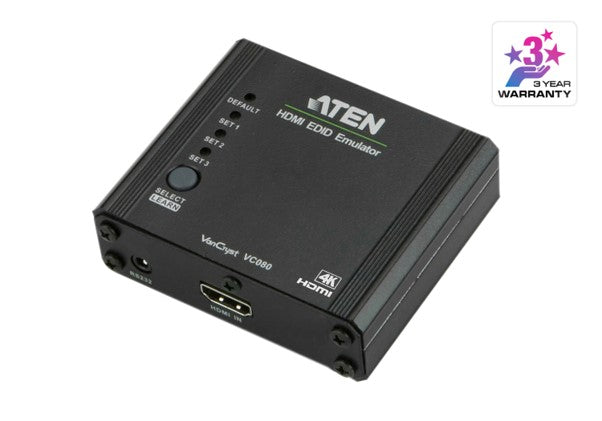

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.

The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Package Contents

1x VC080 4K HDMI EDID Emulator with Programmer

1x RS-232 Configuration Cable(1.8 m)

1x USB to DC Power Cord

1x User Instructions

Features

Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)

EDID Wizard – allows a user an easy way to manage EDID settings

Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control

EDID mode selection – Default, Learning , Programming

HDMI (3D, Deep Colour), HDCP compatible

Supports Dolby True HD and DTS HD Master Audio

Automatically manages EDID communication between connected devices

Signalling rates up to 2.25 Gbits in support of 1080p display

LED indication of video source devices

Supports wide screen

Supports hot-plugging

Non-Powered *
* If the video source is not receiving enough power an external power cord should be connected.
