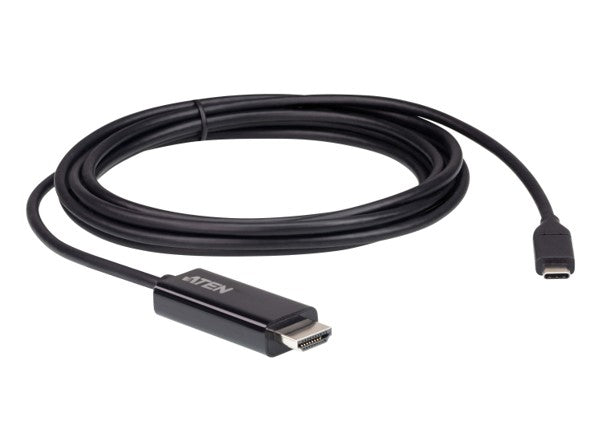

Aten USB-C to 4K HDMI Cable, 2.7m - UC3238
• Connect a USB-C enabled laptop or Smartphone which utilizes “DP Alt Mode ”functionality to an HDMI compatible display using a single cable
• Supports resolutions up to 4K@60Hz (3840 x 2160 @ 60 Hz)
• Supports a long-distance connectivity of up to 2.7 meters
• Works with all major operating systems: Windows®, OS X®, and Android
USB-C connection, Plug and Play
No drivers or adapters required. The UC3238 is the perfect solution for your USB-C enabled laptop or smartphone.
Ultra High-Definition 4K Video
Supports resolutions up to 4K@60Hz (3840 x 2160 @ 60 Hz). Transmits high-definition video and audio from a computer to an HDTV for video streaming or gaming.
2.7-Meters Long Distance Connectivity
Supports a long-distance connectivity of up to 2.7 meters, providing maximum conductivity and improving signal transmission.
Multiplatform Support
Cast from your phone or laptop, including MacBook, to any HDMI-enabled TV/monitor/projector for both video and audio transfer.
UC3238 is a seamless, single cable solution for connecting from USB-C laptop to an HDMI display, allowing for tidy installation and cable management without the needs for additional dongles or HDMI extension cables.
It supports HDMI 2.0 with a 4K (3840 x 2160 @ 60 Hz) resolution. Users can transmit high-definition video and audio from computer to an HDTV for video streaming or gaming. In addition, you can connect and configure your monitor for a mirrored display or an extended desktop view.
Moreover, UC3238 does not require external drivers or additional power. It works with USB-C port computers and smartphones with DP Alt mode, compatible with Android, Mac OS X and Windows operating systems, and is convenient to use and carry around.
It has a fully reversible USB-C interface with 2.7 meters long distance connectivity that is capable of providing maximum conductivity and improving signal transmission.
Features
Connect a USB-C enabled laptop or Smartphone which utilizes “DP Alt Mode” functionality to an HDMI compatible display using a single cable*
Supports resolutions up to 4K@60Hz (3840 x 2160 @ 60 Hz)
Supports a long-distance connectivity of up to 2.7 meters
No additional dongles and HDMI extension cables needed
Plug and play – no drivers or external power adapter needed
Works with all major operating systems: Windows®, OS X® and Android**
Compatible with Thunderbolt 3 (USB-C)
* With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.
** Support Android mirror mode only.
|
Computer Connections |
1 |
|
Connectors |
|
|
USB Port |
1 x USB-C Male |
|
Video Output |
1 x HDMI Type-A Male |
|
Video |
|
|
Max. Pixel Clock |
594MHz |
|
Max. Resolution |
3840 x 2160 @ 60 Hz |
|
Compliance |
USB 3.1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible) |
|
Audio |
|
|
Output |
1 x HDMI Type A Male |
|
Environmental |
|
|
Operating Temperature |
0 - 40 ºC |
|
Storage Temperature |
-20 – 60 ºC |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.09 kg ( 0.2 lb ) |
|
Dimensions (L x W x H) |
6.40 x 2.10 x 1.10 cm |
UC3238 Datasheet PDF
