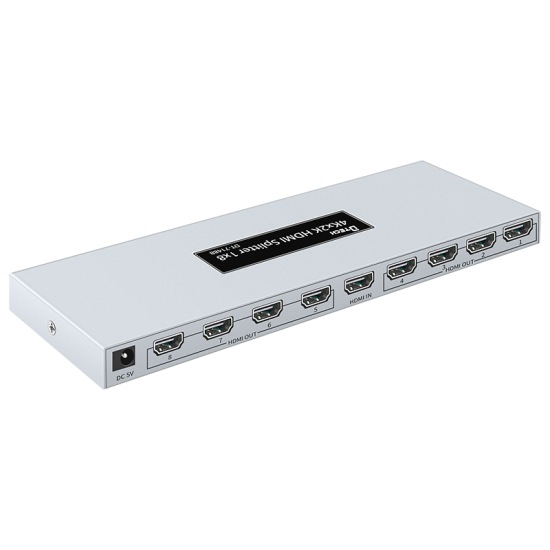

Dtech Splitter, HDMI, 8 Port, 4K @30HZ - 7148B
DT7148BSPLHDMIX
Ex VAT
• This is an ultra-high-definition HDMI splitter that supports 3D and 4K * 2K resolution.
• It can easily distribute one ultra-high-definition signal to multiple displays that support ultra-high-definition signals. In addition, when it is connected to the signal output end of an HDMI cable, the HDMI signal can be amplified.
• The HDMI splitter can be widely used in all fields that require HDMI signal distribution and combination: military industry, multimedia teaching, video conference, large screen display, exhibition, finance, scientific research, meteorology, supermarket, conference system and other fields.
- Allocate one HDMI signal input to multiple HDMI signal outputs
- Perfect support for 3D signals
- Support 4K * 2K resolution
- Support CEC
- Support 340MHz / 3.4Gbps single channel bandwidth
- Support 24-bit / 30-bit / 36-bit / 48-bit dark
- Audio format DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / DOLBY-AC3 / DSD / HD (HBR)
- Using 26AWG HDMI standard cable, the transmission distance of the input end can reach 5 meters, and the transmission distance of the output end
- Up to 10 meters
- Support signal timing reconfiguration
- No signal loss
- Electrostatic discharge voltage protection:
- ± 3kV
- Product working temperature:
- Product working temperature at room temperature 20 ℃ 55 ～ 65 ℃
- Electrical specifications:The rated input voltage of this product: 5V2A
- Volume weight:
- Product volume: 225mm * 63mm * 15mm
- Product weight: 340g ± 10g
- Note:
- Adjust the resolution suitable for the product and access the input.
- The length of the HDMI cable must not exceed the requirements for use of this product.
- Use the product delivery adapter.
DT7148B Datasheet PDF
