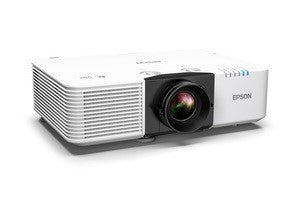

Epson Business Projector, 6000 Ansi Lumens, 3LCD WUXGA resolution, 16:10 Aspect Ratio - EBL690SE
• Inspiring 4KE short-throw professional projector for immersive spaces
• 6,000 lumens brightness with 4K Enhancement technology at 60Hz Delivering sharp, bright images with up to 4.6 million pixels, this budget-friendly laser projector is perfect for large displays in professional spaces.
• Compact short-throw design for immersive display Project scalable images up to 500" with a short throw ratio of 0.5–0.7:1 and 1.4x zoom, creating immersive, shadow- and glare-free visuals in compact spaces.
• Quiet operation Delivers high-performance display at a low noise level of 36dB or 26dB in Eco mode, ensuring a quiet and focused environment for immersive visual experiences.
• Effortless, flexible installation A fixed centre lens with manual lens shift and advanced features like corner focus adjustment ensures easy setup and adaptability for any environment.
• Advanced installation tools Includes a range of free software tools and an optional external camera module for enhanced setup flexibility.
• Making sustainable choices with Epson Made from 19% recycled plastics, low power consumption, reduced packaging and a usage life of up to 30,000 hours in Eco mode (20,000 hours normal).
Designed for compact spaces, the EB-L690SE short-throw offers 6,000 lumens of bright WUXGA resolution with 4K Enhancement, HDR and advanced installation features. With up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.4x zoom and corner focus, it’s ideal for professional applications. Flexible control options are available via HDBaseT, LAN and more.
• Awe-inspiring immersive short throw projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.5–0.7:1, built-in lens shift, and WUXGA resolution with 4K Enhancement. With 1.4x optical zoom, corner focus, and display sizes up to 500", this high-performance display is perfect for immersive applications. Its compact design, low noise, and sleek black chassis ensure crystal-clear images in any setting, all at an affordable price.
• Flexible installation for professional setups
Designed for easy installation, the EB-L690SE can be quickly configured for optimal performance in any room layout. Features like lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options such as split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, enable fast setup and calibration, enhancing flexibility for complex setups.
• Stream, share, and connect with ease
With optional wireless connectivity, a USB-A port for PC-free operation, and HDBaseT/HDMI daisy chaining, the EB-L690SE enhances installation flexibility and convenience.
• Smart control for seamless experience
The EB-L690SE streamlines large-scale deployments with NFC functionality and the Epson Projector Config Tool. The intuitive OSD menu, coupled with Epson’s EPMC solution, enables effortless cloud monitoring and management. Fully compatible with Crestron XiO Cloud, it offers centralised control for seamless operation.
• Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SE features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.
• Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity* and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.
Technology
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0,67 inch with C2 Fine
Colour Light Output
6.000 Lumen- 4.200 Lumen (economy) In accordance with IDMS15.4
White Light Output
6.000 Lumen - 4.200 Lumen (economy) In accordance with ISO 21118:2020
Resolution
WUXGA
Resolution Enhancement
4K enhancement
Aspect Ratio
16:10
Contrast Ratio
Over 5.000.000 : 1
Light source
Laser
Laser Light source
20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction
Manual vertical: ±30 °, Manual horizontal ±30 °
Colour Video Processing
10 Bits
Colour Reproduction
Up to 1.07 billion colours
Optical
Throw Ratio
0,50 - 0,70:1
Zoom
Manual, Factor:1 - 1,4
Lens
Optical
Lens Shift
Manual - Vertical ±50 %, horizontal ±20 %
Screen Size
100 inches - 500 inches
Projection Distance Wide
1,1 m - 5,6 m
Projection Distance Tele
1,5 m - 7,8 m
Projection Distance Wide/Tele
1,09 m - 7,84 m
Projection Lens F Number
1,8 - 2
Projection Lens Focal Length
7,54 mm - 10,55 mm
Projection Lens Focus
Manual
Connectivity
Interfaces
USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), HDMI out, HDBaseT, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC)
Network Protocol
HTTPS, SNMP, ESC/VP.net, PJLink
Advanced Features
Security
Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes
Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other features
21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App
Video Colour Modes
Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control
via: Crestron Integrated Partner, Extron XTP, AMX Device Discovery
General
Power consumption
362 Watt (Normal On-Mode), 250 Watt (Eco On-Mode), 415 Watt (Normal Peak-mode), 303 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)
Supply Voltage
AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions
440 x 368 x 151 mm (Width x Depth x Height)
Product weight
9,3 kg
Noise Level
Normal:36 dB (A) - Economy:26 dB (A)
Supported Temperature
Storage -10° C - 60° C
Supported Humidity
Operation 20% - 80%, Storage 10% - 90%
Options
Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, Wireless LAN unit
Room Type / Application
Boardroom, Gaming, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Sports, Visitor Attraction
Positioning
Ceiling Mounted, Desktop
Colour
White
Other
Warranty
36 months Carry in
