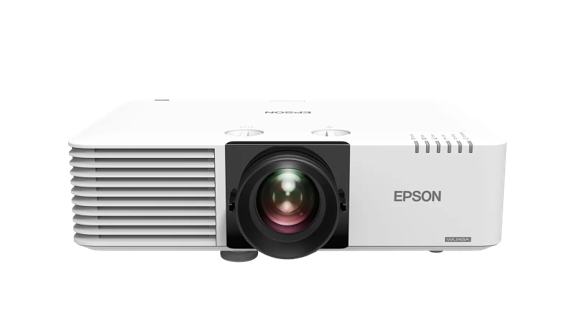

Epson Business Projector, 6000 Ansi Lumens, WUXGA resolution, 16:10 Aspect Ratio - EBL630SU
• Best for professional environments.
• 6,000-lumen Full HD 3LCD short-throw laser projector with flexible installation.
• Short-throw projector
• Built-in Wi-Fi
Redefine projection with the powerful Epson PowerLite L630SU short-throw laser projector. Offering 6,000 lumens of brightness, this high-performance laser projector easily delivers bright, beautiful Full HD WUXGA images in space-constrained environments. Ideal for nearly any application - from lecture halls to gallery walls - the PowerLite L630SU projects eye-catching signage and graphics up to 200" and features built-in tools to seamlessly support multi-projector setups. Designed with convenience in mind, this flexible laser display includes a virtually maintenance-free 20,000-hour laser light source.
6,000-lumen brightness
Crisp images and bright colours, even in well-lit rooms
WUXGA resolution
Sharp Full HD images for excellent clarity
Futureproofed connectivity options
4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
Easy, flexible installation
Lightweight and compact design with wide lens shift
Projector Colour
White
Loudspeaker
10 W
Noise Level -Normal
38 dB (A)
Noise Level -Economy
27 dB (A)
Noise Level - Eco2
0
Options
Connection and control box
Positioning
Ceiling Mounted
Power consumption -(Normal On-Mode)
287 W
Power consumption- (Eco On-Mode)
345 W
Power consumption -(Normal Peak-mode)
258 W
Power consumption -(Eco Peak-Mode)
0.3 W
Power consumption - (Energy saving standby)
164 W
Product Dimensions
440 x 334 x 136 mm (Width x Depth x Height)
Product Range
E9
Room Type / Application
Boardroom
Single Unit
ZN
Supply Voltage
100 V - 240 V, 50 Hz - 60 Hz
Supported Humidity - Operation (from)
20 %
Supported Humidity - Operation (to)
80 %
Supported Humidity - Storage (from)
10 %
Supported Humidity - Storage (to)
90 %
Supported Temperature - Operation (from)
0
Supported Temperature - Operation (to)
45
Supported Temperature - Storage (from)
-10 °C
Supported Temperature - Storage (to)
60 °C
TCO Certified
No
LCD Panel (Type)
0.67 inches with
LCD Panel
C2 Fine
Projection System
3LCD Technology
Resolution
WUXGA
Android TV
No
Epson iProjection App
Ad-Hoc / Infrastructure
Google TV
No
Network Protocol
IPv6
Network Protocol (Projector)
IPv6
2D Colour Modes
Dynamic
Other features
A/V mute
Projector control
AMX Device Discovery
Sealed Light Source Module - Yes
No
Sealed Light Source Module - IP5X rated
n/a
Sealed Optical Engine - Yes
No
Sealed Optical Engine - IP5X rated
n/a
Security (Visual product)
Kensington lock
Video Colour Modes
Dynamic
Colour Light Output - Lumens
6000 Lumens
Colour Light Output - Luman (economy) in accodance with
4200 Lumens
Colour Light Output Testing Standard
In accordance with ISO 21118:2012
Colour Reproduction (Projector)
Upto 1.07 billion colours
Colour Video Processing
10 Bits Color
Contrast Ratio - Ratio:1
5000000
Contrast Ratio - Absolute black
Absolute black
High Definition
Full HD
Keystone Correction Type (Horizontal)
manual
Keystone Correction Angle (Horizontal)
30
Keystone Correction Type (Vertical)
manual
Keystone Correction Angle (Vertical)
30
Laser Lightsource -Durability High
20000 hr
Laser Lightsource -Durability Eco
30000 hr
Light Source (Visual product)
Laser
Pixel Numbers
2304000
White Light Output - Lumens
4200 Lumens
White Light Output - Lumens (economy) in accodance with
4200 Lumens
White Light Output Testing Standard
In accordance with ISO 21118:2020
Interchangeable Lens
No
Lens
Optical
Lens (varies by lens)
n/a
Lens Shift
manual
Lens Shift (Vertical ±)
50
Lens Shift (Horizontal ±)
20
Lens Shift (varies by lens)
n/a
Mechanical shutter
No
Offset - varies by lens
n/a
Projection Distance varies by lens
n/a
Projection Distance Wide from
0.9 m
Projection Distance Wide to
3.5
Projection Distance Wide varies by lens
n/a
Projection Distance Wide Tele varies by lens
n/a
Projection Lens F Number from
1.7
Projection Lens F Number varies by lens
n/a
Projection Lens Focal Length (From)
11.76
Projection Lens Focal Length (varies by lens)
n/a
Projection Lens Focus
Manual
Projection Lens Focus (varies by lens)
n/a
Screen Size from
50 in
Screen Size to
200 in
Screen Size varies by lens
n/a
Throw Ratio from
0.8
Throw Ratio to
1.07
Type of Zoom
motorized
Zoom factor (from)
1
Zoom factor (to)
1.35
EBL630SU Datasheet PDF
