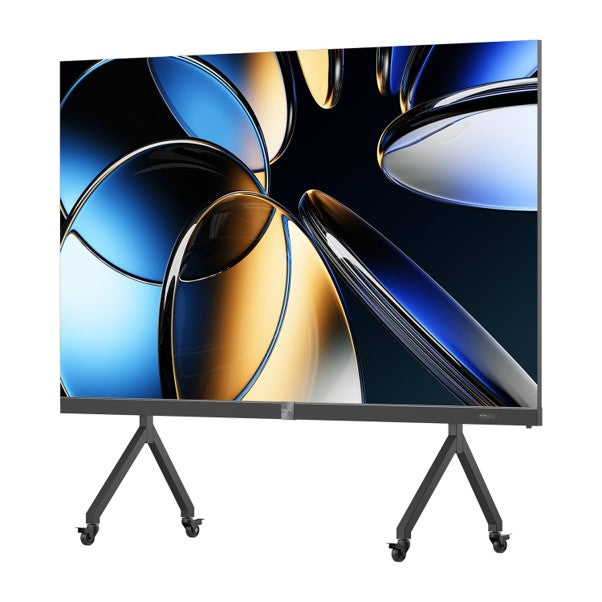

Hisense AlI-In-One LED, 136", FHD 1920x1080P resolution, Android 14.0 OPS - HAIO136GE
• Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display.
• Equipped with Hisense’s unique ASIC picture quality solution for precision dimming it controls each LED pixel to accurately express brightness and chromaticity information.
• Delivering vivid detail and unrivalled colour depth, the All-in-one 136” LED display will provide finishing touch to any quality meeting space.
Effortless Transmission, Seamless Connectivity
This wireless screen-sharing solution enables instant quad-split screen for seamless collaboration, with compatibility across Windows, Android, and mac OS systems.
Built-in VisionInfo
Hisense VisionInfo integrates cloud-based remote management of displays, enabling centralized control and content distribution across dedicated screens to streamline professional digital operations.
Streamlined Deployment, Accelerated Productivity
The Hisense LED all-in-one achieves efficient deployment with pre-assembled installation and large modules. Its auto-calibration system eliminates technical barriers, while front access enables uninterrupted performance in mission-critical scenarios.
Energy Efficiency, Optimized Performance
Efficient power supply and 3-in-1 ASIC architecture reduce energy consumption; optimized common cathode drivers and energysaving algorithms cut power by over 25% versus conventional LED all-in-one display, largely slashes operational costs.
Captivating Image, Vivid Scenes
Hisense’s proprietary image processor, powered by advanced algorithms, enhances color, corrects grayscale levels, and incorporates MEMC, HDR, AI picture quality and SR technologies. This delivers lifelike highlights and vivid colors across all your content.
Stereo Sound, Immersive Audio
Equipped with 60W built-in speakers and industry-exclusive triple cinema-grade certifications—DTS:X for immersive object-based audio, Dolby Vision™ for premium HDR visuals, and Dolby Atmos® for multidimensional sound—this LED display delivers unparalleled all-in-one audiovisual performance.
Executive-Grade Design, Seamless Integration
With an ultra-slim 32.3mm profile, this display integrates seamlessly into executive spaces. Its precision-engineered design delivers an elegant aesthetic, enhancing boardrooms. The removable port cover maintains a clean, uncluttered appearance by neatly concealing ports.
Chip-Driven Precision Unleashed
The dedicated ASIC chipset replaces FPGA-based architecture and upgrades signal transmission to true 4K (60Hz) , eliminating convoluted sending/receiver cards. Proprietary enhanced LVDS protocol delivers 16 times bandwidth over conventional solutions, HDMI 2.0 transmission is enabled for the visually lossless transmission.
Physical
Pixel Pitch: 1.5625 mm
Pixel Configuration: Flip-Chip COB (1 Red, 1 Green, 1 Blue)
Screen Resolution (W x H): 1,920 x 1,080
Module Dimensions (W x H): 150 x 337.5 mm / 5.9 x 13.3 inch
No. of Modules Per Screen (W x H): 20 x 5 (Total 100 Pcs LED Modules)
Screen Dimensions (W x H x D) (With Screen Frame): 3,004 x 1,774.5 x 32.3 mm / 118.3 x 69.9 x 1.27 inch
Product Dimensions (With Mobile Cart): 3,004 x 2,439.5 x 911.3 mm / 118.3 x 96.04 x 35.88 inch
Panel/Cabinet Dimensions (W x H x D): 600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch
Weight (per panel / screen): 4 kg / 110 kg // 8.82 lbs / 242.55 lbs
Pixel Density: 409,600 pixels/m2
Flatness of Cabinet (mm / inch): ± 0.05 mm
Cabinet Material: Die-cast Aluminium
Grey Level: 14 bits
Colour Gamut: >113% DCI-P3
Aspect Ratio: 16:9
Service Access: Front
Optical
Brightness (max./peak.) (steady-state peak / instantaneous peak): 1,000 nits // 1,400 / 2,100 nits
Brightness - Default (Adjustable): 600 (100 - 1,000) nits
Contrast Ratio: 52,000: 1@10lux
Visual Viewing Angle (H x V): 165° x 150°
Brightness Uniformity: 98%
Colour Uniformity: + 0.003 Cx, Cy
Processing Depth: 14 bits
Colour Temperature - Default (Adjustable): 6,500 K (2,000 ~ 9,300 K)
Electrical
Power Supply Voltage: 220 - 240 V, 50/60 Hz
Average Power Consumption (W/Screen): ≤850@1,000nits / ≤750@600nits
Max Power Consumption (W/Screen): ≤1,720@1,000nits / ≤1,250@600nits
Refresh Rate: 3,840 Hz (typ.)
Wi-Fi: 2.4G & 5G
Bluetooth: 5.2
Input:
- HDMI(2.0) IN x3 (internal), HDMI IN1 supports eARC
- USB2.0 x1 (internal)
- USB3.0 x2 (front)
- Type-C (not full function) x1 (front)
- RS232 x1 (internal)
- LAN x1 (internal)
- OPS slot x1 (rear)
Output:
- HDMI(2.0) LOOP x1 (internal), HDMI IN2 signal compatible
- SPDIF x1
- Audio Out w/o
Operation Conditions
Operating Temp/Humidity: 0 - 40°C / 10% - 90%RH (no frost)
Storage Temp/Humidity: -20 - 40°C / 10% - 65%RH (no frost)
Expected LED Lifetime (typ): 100,000 Hrs
Speaker
Built-in: 10W x 6
System
OS: Android 14
CPU: Quad-core Cortex-A73 1.8GHz 64-bit
GPU: Mali-G57 MC1
DDR: 8GB
ROM: 128GB
Language: Chinese / English (Default) / French / German / Spanish / Italian / Polish / Arabic / Russian
Package Solution 1
Packing Method: Flight case for Cabinets / Modules / Wall Bracket and Accessory
Packaging Dimensions (WxHxD): 1,005 x 2,055 x 765 mm 39.56 x 80.90 x 30.12 inch
Net / Gross Weight (w Wall Bracket): 110kg / 200kg // 242.50lbs / 440.92lbs
Mobile Cart (Optional)
Packaging Method: Wooden Box (For Mobile Cart) (Option)
Packaging Dimensions (WxHxD): 2,090 x 335 x 960 mm 82.28 x 13.19 x 37.8 inch
Net / Gross Weight: 38.7kg / 80kg // 85.32 lbs / 176.37 lbs
Miscellaneous
Curve Support (-:concave +:convex): Flat, Flat
Controller: Embedded
Standard Accessory: User Manual / Remote Control / Battery / Vacuum Tool / Wall Bracket
Optional Accessory: Mobile Cart (LGT60401D) / Hisense Dongle (HT008E) / OPS (S02EMS5C821C)
Certification: CE, CB, EAC
Available Regions
EU
APAC
SA
